Plate Heat Exchanger
Herring Plus Plate Heat Exchanger is designed for maximum heat transfer efficiency, helping to reduce energy consumption, lower operating costs, and improve the stability of your production process.
Plate Heat Exchanger (เครื่องแลกเปลี่ยนความร้อน)

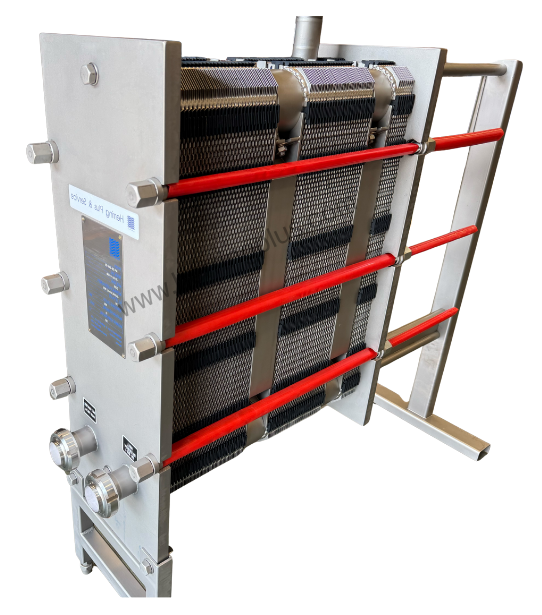

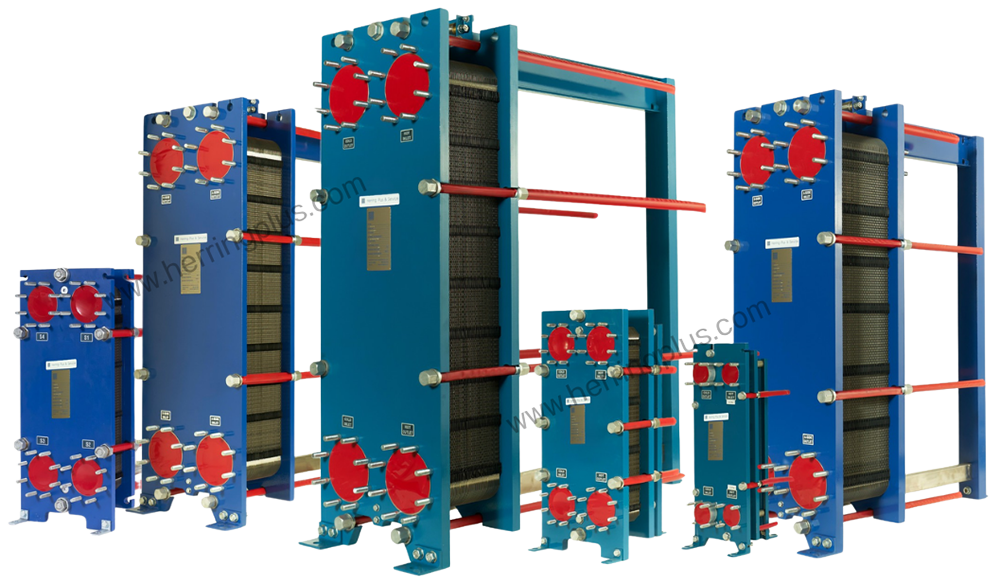

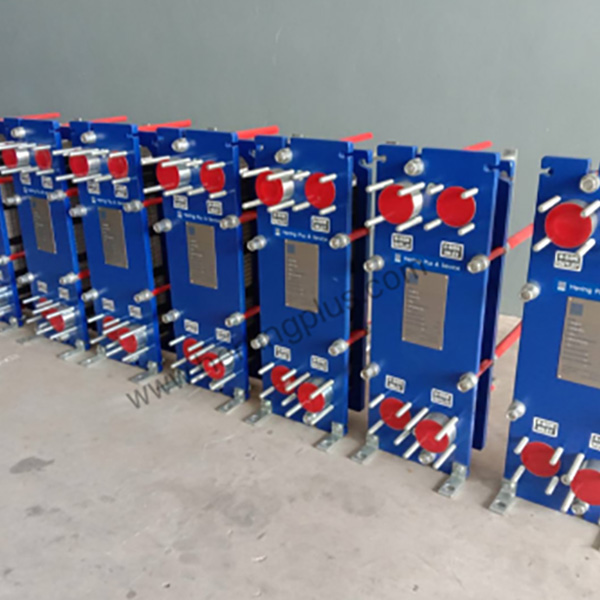

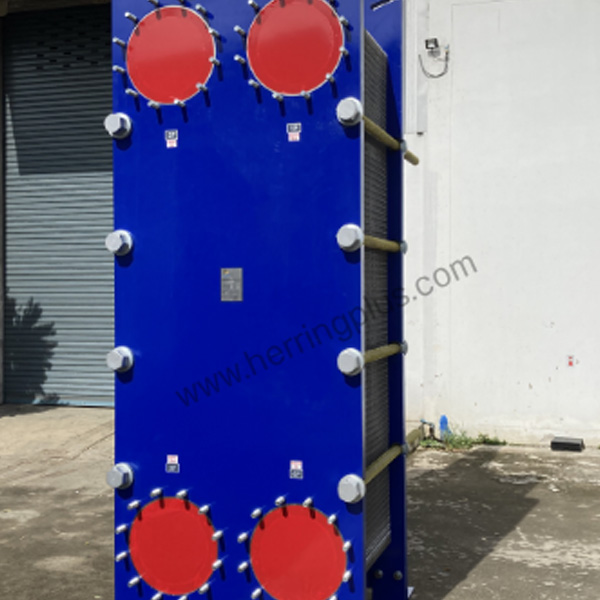

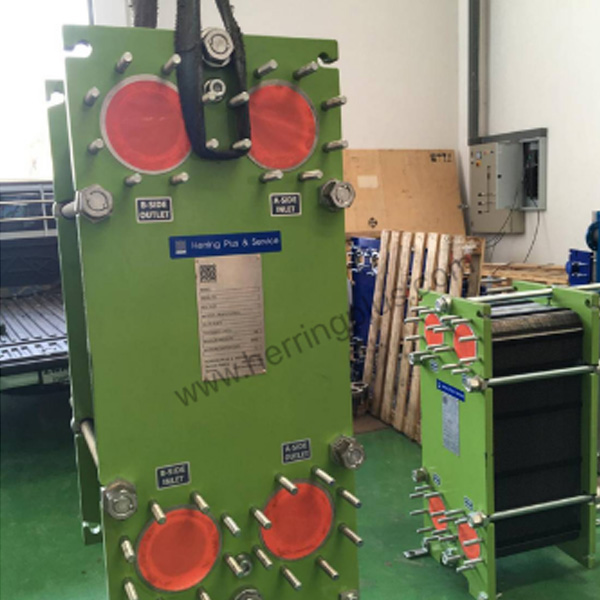

Plate Heat Exchanger (PHE) is a heat transfer equipment designed to transfer heat between two fluids. It consists of multiple metal plates arranged in a series, which act as the heat transfer medium. The two fluids flow through separate channels without coming into direct contact or mixing with each other.
The Plate is designed with a corrugated pattern to increase the heat transfer surface area and promote turbulent flow. This allows the Plate Heat Exchanger to achieve efficient heat transfer while maintaining a compact design and requiring less installation space compared to the heat transfer area provided.
Herring Plus Plate Heat Exchanger is designed to support a wide range of industrial processes, with a focus on efficient heat transfer, energy savings, reduced operating costs, and stable production processes.
With more than 20 years of experience, Herring Plus provides not only Plate Heat Exchanger New Units but also comprehensive Plate Heat Exchanger Service through a One Stop Solution. Our services cover the supply of Plates and Gaskets, equipment inspection and condition assessment, Plate Pack Cleaning, leak inspection through Dye Testing, Gasket Replacement, as well as repair, maintenance, and reassembly. All services are carried out by our team of engineers and technicians with expertise in Plate Heat Exchangers.
This comprehensive approach helps customers plan maintenance effectively, reduce the risk of Downtime, and ensure that their equipment continues to operate reliably and efficiently.
Model Available

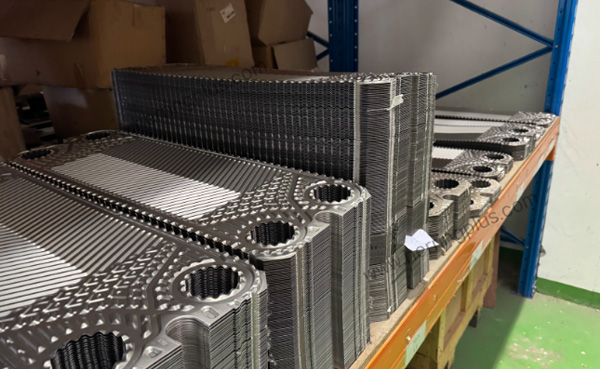

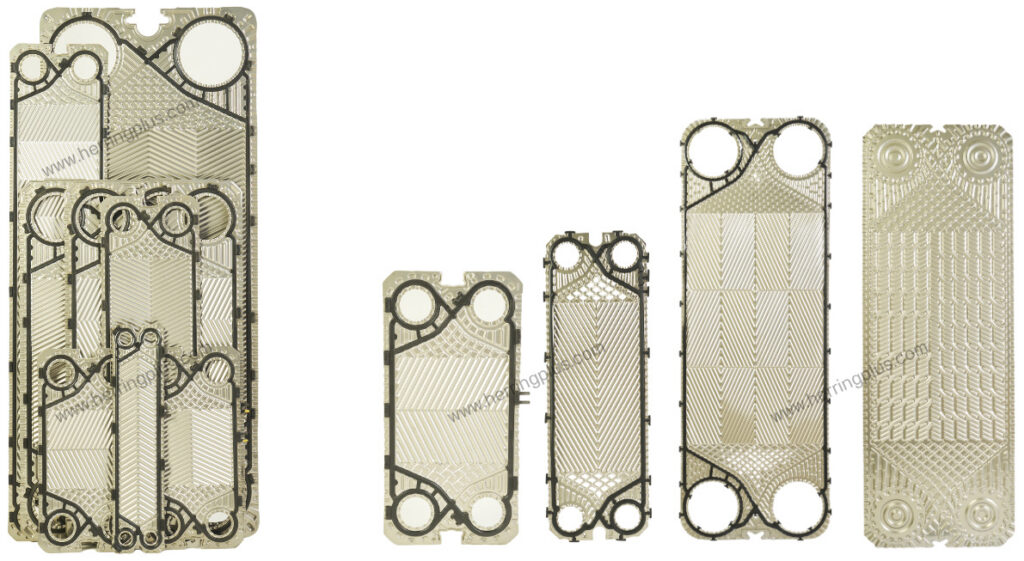

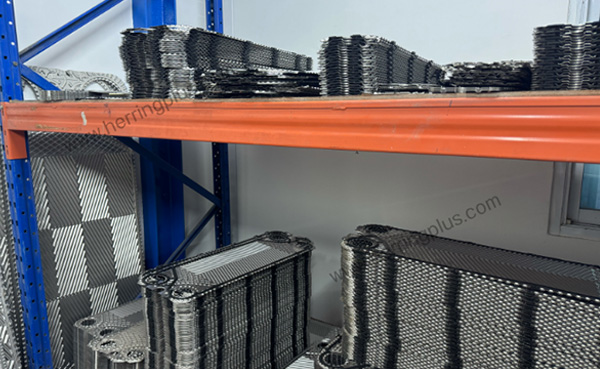

Herring Plus provides Plate Heat Exchanger, Plate, and Gasket solutions for a wide range of brands and models used across various industrial applications. We also provide expert recommendations to help customers select the appropriate Plate and Gasket based on their equipment model and operating conditions.
We support Plate Heat Exchangers from various leading brands, including Alfa Laval, SONDEX, GEA, Kelvion, APV, Schmidt, HISAKA, TRANTER, and Fischer, as well as other brands and models according to customer requirements.
If you cannot find the model you are looking for in the list, please contact the Herring Plus team for further assistance with your Plate Heat Exchanger Model, Plate Specification, and suitable Gasket for your existing equipment.
Alfa Laval
P – Series : P01,P22, and many more.
A – Series : AM10, AM20, A15-B, and many more.
M – Series : M3, M6, M6-M, M10-B, M10-M, M10-BW, M15-B, M15-B, M15-M, MK15-BW, M20-M, MX 25-B, MX 25-M, M30, M30-W, EC 500 and many more.
SONDEX
HX, R5, R6, TR9, LR9, M60, M92, J185, T4, H17, K55, K71, SR2, N35, N50, FFPE and many more.
GEA
VT 10, VT 20 H, VT 20M/P, VT 40 H, VT 40 M/P, VT 80 H, VT 80 M/P, VT 805, N40, FA 184, NT 100, NT 150, and many more.
APV
HX, R5, R6, TR9, LR9, M60, M92, J185, T4, H17, K55, K71, SR2, N35, N50, FFPE and many more.
Schmidt
S16, S17, S22, S27, S30, S32, S37, S52, S64, Star45, Star90 and many more.
HISAKA
UX01, UX10, UX20, UX30, UX40, LX10, LX20, LX30, LX40, RX10, RX30, RX50, RX70, EX15 and many more
TRANTER
GX12, GX26, GX42, GX51, and many more.
Fischer
E5, E8, E18, E28, E32, E40, E61, E100 and many more.

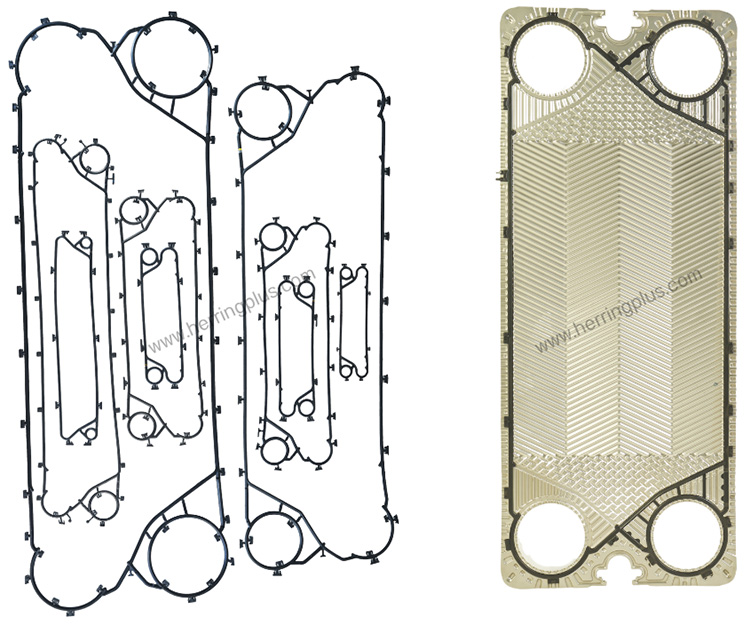

Plate and Gasket Materials
Selecting the appropriate Plate Material and Gasket Material is an important part of choosing a Plate Heat Exchanger. Each material offers different levels of resistance to temperature, pressure, and chemicals.
Therefore, material selection should be based on factors such as the type of fluid, operating temperature, operating conditions, pressure, and the requirements of the production process. Choosing the right materials helps ensure reliable performance, efficient heat transfer, and long-term equipment durability.
Plate Materials
Plate can be obtained in all pressable materials. the most common material are:
- AISI 316, AISI 316L,904L
- Alloy 20/18/6 (Avesta SMO)
- Hastelloy
- Nickel
- Titanium
- And other materials upon request.

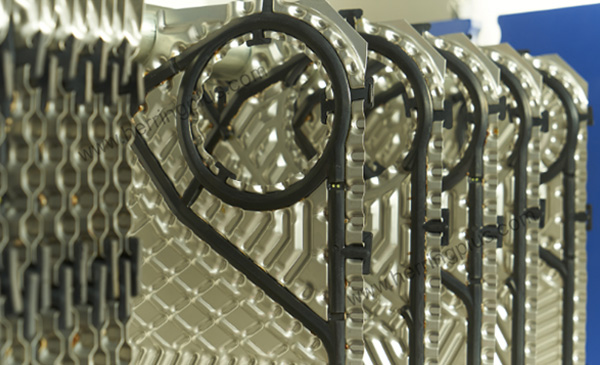

Gasket Materials
Gaskets available in a wide range of elastomers:
- Nitrile rubber (NBR)
- EPDM
- Viton (FKM)
- Neoprene (Chloroprene)
- Other materials available upon request
